Section 3.1 Exercises

Part 1: Vertical Stretches, Reflections, and Vertical Shifts

1. Write a function whose graph is the graph of $y=|x| $

Shifted up three units.
Vertically stretched by a factor of 3.
Vertically compressed by a factor of $\dfrac{1}{3} $, reflected about the x-axis, and then shifted down two units.

2. Write a function whose graph is the graph of $y=x^3$

Shifted down two units.
Vertically stretched by a factor of 4.
Vertically compressed by a factor of $\dfrac{1}{4} $ and reflected about the x-axis.

3. Use the graph of $y=f(x)$ below to sketch the graph of the indicated function with transformations. Show a graph of each transformation if multiple transformations occur and where each indicated point was transformed.

$A piecewise defined function that decreases until x = -1, then is constant.$

$y=f(x)+2$

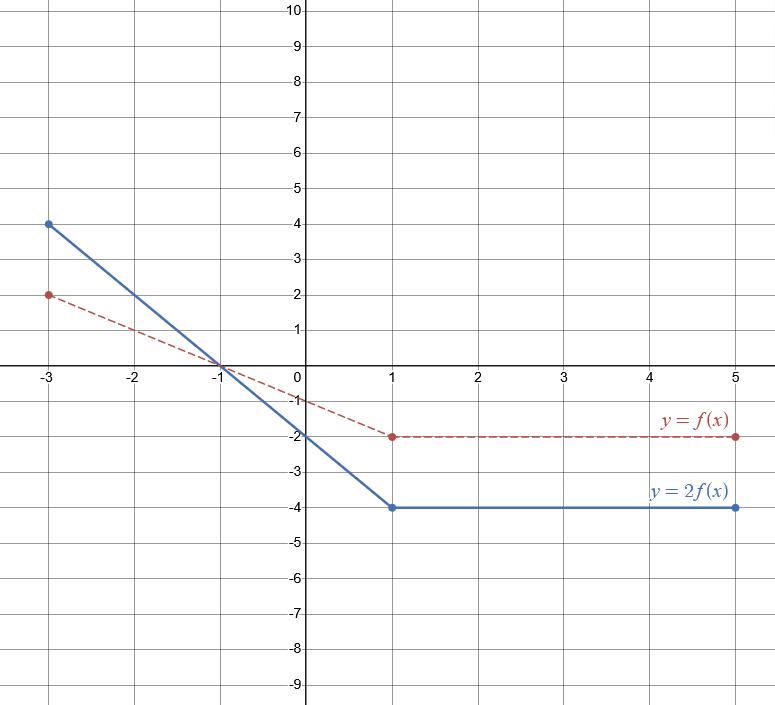

$y=2f(x)$
$y=-f(x)-1$
$y=-\dfrac{1}{2}f(x)+4$

4. Use the graph of $y=g(x)$ below to sketch the graph of the indicated function with transformations. Show a graph of each transformation if multiple transformations occur and where each indicated point was transformed.

$the graph of a curve that increases from -4 to -2.3, then decreases until 2.3, and then increases again.$

$y=g(x)-3$
$y=\dfrac{1}{2}g(x)$
$y=-g(x)+1$
$y=-2g(x)+3$

5. Use the graph of $y=h(x)$ below to sketch the graph of the indicated function with transformations. Show a graph of each transformation if multiple transformations occur and where each indicated point was transformed.

$a graph of a piecewise defined function that increase to y=3, is constant, then decreases to y = 1 at x =5.$

$y=h(x)-1$
$y=3h(x)$
$y=-h(x)+5$
$y=-\dfrac{1}{2}h(x)-2$

6. Use transformations of the graph of $y=x^2$ below to sketch the graph of the indicated functions. Show a graph of each transformation if multiple transformations occur and where each indicated point was transformed.

$The graph of the parabola y=x^2$

$y=x^2-2$
$y=3x^2$
$y=2x^2+1$
$y=-\dfrac{1}{2}x^2-3$

7. Use transformations of the graph of $y=x^3$ below to sketch the graph of the indicated functions. Show a graph of each transformation if multiple transformations occur and where each indicated point was transformed.

$The graph of the cubic function y = x^3$

$y=x^3+4$
$y=4x^3$
$y=\dfrac{1}{2}x^3-4 $
$y=-2\dfrac{1}{4}x^3+2 $

8. Use transformations of the graph of $y=\sqrt{x}$ below to sketch the graph of the indicated functions. Show a graph of each transformation if multiple transformations occur and where each indicated point was transformed.

$The graph of the square root function$

$y=\sqrt{x}-1$
$y=3\sqrt{x}$
$y=2\sqrt{x}+4$
$y=-\dfrac{1}{2}\sqrt{x}+2$

9. Use transformations of the graph of $y=\dfrac{1}{x+2}$ below to sketch the graph of the indicated functions. Show a graph of each transformation if multiple transformations occur and where each indicated point was transformed.

$The graph of a rational function with vertical asymptote at x=-2 and horizontal asymptote at y = 0.$

$y=\dfrac{1}{x+2}+2$
$y=2\dfrac{1}{x+2}$
$y=-\dfrac{1}{2}\dfrac{1}{x+2}-1$

10. Find a formula for the function $y=f(x)$ whose graph is given below.

$The graph of a downward facing parabola.$

11. Find a formula for the function $y=g(x)$ whose graph is given below.

$clipboard_ef343445c03b1c8c804be4b1fb6001d83.png$

12. Find a formula for the function $y=h(x)$ whose graph is given below.

$The graph of a shifted absolute value function.$

Past 2: Horizontal Shifts

13. Write a function whose graph is the graph of $y=|x| $

Shifted left three units.
Shifted right two units, then vertically stretched by a factor of 2.

14. Write a function whose graph is the graph of $y=x^3$

Shifted right one unit.
Shifted left five units, reflected about the y-axis, and shifted up one unit.

15. Use the graph of $y=f(x)$ below to sketch the graph of the indicated function with transformations. Show a graph of each transformation if multiple transformations occur and where each indicated point was transformed.

$A piecewise defined function that decreases until x = -1, then is constant.$

$y=f(x+2)$
$y=3f(x-1)$
$y=-f(x+3)+4$

16. Use the graph of $y=g(x)$ below to sketch the graph of the indicated function with transformations. Show a graph of each transformation if multiple transformations occur and where each indicated point was transformed.

$the graph of a curve that increases from -4 to -2.3, then decreases until 2.3, and then increases again.$

$y=g(x-2)$
$y=2g(x+3)$
$y=-g(x-1)+1$

17. Use the graph of $y=h(x)$ below to sketch the graph of the indicated function with transformations. Show a graph of each transformation if multiple transformations occur and where each indicated point was transformed.

$a graph of a piecewise defined function that increase to y=3, is constant, then decreases to y = 1 at x =5.$

$y=h(x+1)$
$y=h(x-3)-3$
$y=-2h(x+2)$

18. Use transformations of the graph of $y=x^2$ below to sketch the graph of the indicated functions. Show a graph of each transformation if multiple transformations occur and where each indicated point was transformed.

$The graph of the parabola y=x^2$

$y=(x+4)^2-2$
$y=3(x-1)^2$

19. Use transformations of the graph of $y=x^3$ below to sketch the graph of the indicated functions. Show a graph of each transformation if multiple transformations occur and where each indicated point was transformed.

$The graph of the cubic function y = x^3$

$y=(x+3)^3$
$y=-(x-1)x^3+2$
$y=\dfrac{1}{2}(x+1)^3-4$

20. Use transformations of the graph of $y=\sqrt{x}$ below to sketch the graph of the indicated functions. Show a graph of each transformation if multiple transformations occur and where each indicated point was transformed.

$The graph of the square root function$

$y=\sqrt{x-4}$)
$y=\sqrt{x+2}-3$
$y=-2\sqrt{x-1}$

21. Find a formula for the function $y=f(x)$ whose graph is given below.

$The graph of a parabola$

22. Find a formula for the function $y=g(x)$ whose graph is given below.

$The graph of a reflected cubic.$

23. Find a formula for the function $y=h(x)$ whose graph is given below.

$clipboard_ef301e25162308678eee2ab06b0c8a987.png$

24. A manufacturer used test market data to predict the Revenue $R$ from producing $x$ units of one of their products with the function $R(x)=-1.12x^2+200x $.

If a new regulatory fee cause the revenue to decrease by $500, find a formula for the new revenue with this regulation.
If a new tariff caused the revenue to decrease 15%, find a formula for the new revenue with this regulation.

25. The amount of a therapeutic medication prescribed for a condition (in mg) is a function of the weight $w$ in pounds described by the function $R(x)=2.5\sqrt{x}+10$. If the scale weighting the patient overestimated the weight by 2.3 pounds, find a formula for the actual amount of the medication that should be prescribed.

Answer

1. a) $y=|x|+3$ b) $y=3|x|$ c) $y=-\dfrac{1}{3}|x|-2$

3. a) $the graph shifted up two units$
