The early chapters in our book focused on building a solid understanding of the whole number system, which is essential for long-term success in mathematics. Now, we shift our attention to fractions. Fractions were developed because many real-world problems cannot be accurately described using only whole numbers. As you work through this chapter, you’ll see how a strong grasp of whole numbers provides a helpful foundation for making sense of fraction concepts.
Importance of Fractions
Students often struggle with fractions because they view them as two separate whole numbers rather than a single number representing a part of a whole. This misunderstanding prevents them from seeing the relationship between the numerator and denominator, and from using helpful benchmarks like 0, ½, and 1. Unlike whole numbers, fractions rarely appear in children’s everyday experiences beyond simple examples like ½ or ¼, making them less intuitive. Additionally, students tend to incorrectly apply whole number reasoning to fractions, by believing, for instance, that 1/20 is greater than 1/10 because 20 is larger than 10. (Musser et al., 2014; NCTM, 2020).
Another major challenge is the abstract nature of fractions, which can represent multiple ideas—part-whole, measurement, division, ratio, or operator—depending on the context. Many students only encounter the part-whole model, limiting their understanding. Cognitive overload also plays a role, as tasks with fractions often require juggling several steps, especially when working with unlike denominators (Feike et al., 2018). Moreover, instruction that emphasizes procedural rules—like “invert and multiply”—before students fully grasp the meaning of fractions leads to superficial learning. When students are taught procedures without context, they may memorize steps but lack the conceptual understanding needed for success in more advanced math (NCTM, 2020).
Fractions Children Learn in Elementary School
As we learn the concepts and procedures associated with fractions, it is important that you have context of what students learn about fractions in elementary school. Below is a video explaining how children progress with their understanding of fractions. Also included is a list of some of the standards from the Common Core State Standards (CDE, 2013).
Graham Fletchy - https://youtu.be/9IwVAXmrWK8?si=0DCRvo6Lmqb_1zEq
- Common Core Standards (CDE, 2013)
-
Grade 3: Introduction to Fractions
3.NF.1: Understand a fraction 1/b as one part of a whole divided into b equal parts; a/b as a parts of size 1/b.
3.NF.2: Represent fractions on a number line.
2a: Mark 1/b on a number line between 0 and 1.
2b: Mark a/b by partitioning and counting lengths of 1/b.3.NF.3: Explain equivalence and compare fractions:
3a: Understand equivalence by same size or location.
3b: Generate simple equivalent fractions.
3c: Express whole numbers as fractions.
3d: Compare fractions with same numerator or denominator using visual models.Grade 4: Operations and Equivalence
4a–4c: Visualize, apply repeated addition, and solve word problems.
4.NF.1: Explain why a fraction a/b is equivalent to (n × a)/(n × b).
4.NF.2: Compare fractions with different numerators and denominators.
4.NF.3: Build fractions from unit fractions:
3a: Understand addition/subtraction as joining/separating parts.
3b: Decompose fractions into sums.
3c: Add/subtract mixed numbers.
3d: Solve word problems with like denominators.4.NF.4: Multiply a fraction by a whole number
Grade 5: All Operations with Fractions
5.NF.1-2: Use equivalent fractions to add/subtract fractions with unlike denominators.
5.NF.3: Interpret a fraction as division (e.g., 2 ÷ 3 = 2/3).
5.NF.4: Multiply a fraction or whole number by a fraction.
4a: Visualize multiplication.
4b: Find area of rectangles with fractional side lengths.5.NF.5: Interpret multiplication outcomes relative to 1.
5.NF.6: Solve real-world problems involving multiplication of fractions and mixed numbers.
5.NF.7: Divide unit fractions by whole numbers and vice versa:
Wonder, Play, Grow

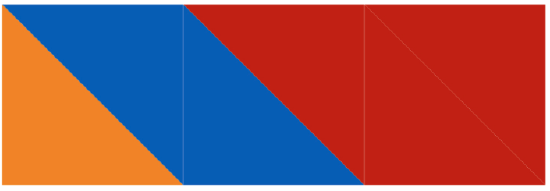

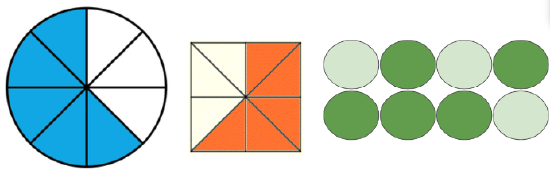

Fraction Talks: Before discussing anything with others, review each picture and determine what fraction of space is occupied by each color. Take some time to think about it and about how you can defend your answer with the class.
Picture 1:

Picture 2:

Picture 3:

Concept of Fraction
In elementary math, fractions are used in two distinct ways:
🧠Let's Listen to Learn❤️
Part-to-Whole Model:
This is the most familiar introduction to fractions. A fraction like 3/4 represents 3 parts out of 4 equal parts of a whole. The numerator (3) tells how many parts are being considered, and the denominator (4) tells what kind of parts (fourths, fifths, etc.). This model emphasizes fractions as a way to name parts of a whole, whether it's pieces of a pie (¾), segments of a stick (3/6), or cups of liquid (4/6).

Fractions as Numbers:
Fractions are also abstract numbers that represent a relative amount, independent of any particular object. For instance, 5/8 means the same proportion regardless of the size or shape of the whole—it expresses a point on the number line, just like whole numbers do. This view shifts the meaning of fractions from a specific object-based context to a general numerical concept. Each of the figures below shows the relative amount of 5/8.

A fraction is a number that can be represented by an ordered pair of whole numbers (\(\frac{a}{b})\) (or (a/b)), where \(b\neq 0\). In set notation, the set of fractions is \[ F = \left\{ \frac{a}{b} \,\middle|\, a \text{ and } b \text{ are whole numbers, } b \ne 0 \right\}. \]
Language Note: The word fraction comes from the Latin word fractius which means ”to break”. When an object is divided into an equal number of parts then each part is called a fraction. The number a is called the numerator, derived from the Latin word numeros, meaning ”number”, and represents the number of parts in consideration. The number b is called the denominator, derived from the Latin word denominare, meaning ”namer”, and represents how many equal parts in the unit. Keep in mind that this number can never be zero since division by zero is undefined.
Visual Representation of a Fraction
Several physical and pictorial representations are useful in the elementary school classroom to illustrate fraction concepts.
SET MODEL - The figure below shows a set of 7 apples that contains a subset of 3 that are wormy. Therefore, we would say that \(\frac{3}{7}\) of the apples are wormy.

NUMBER LINE (Measurement or Length Model) - Fractions can be shown on a number line by dividing the segment from 0 to 1 into equal parts. The fraction \(\frac{1}{b}\) is the point at the end of the first segment when that interval is divided into b equal parts.

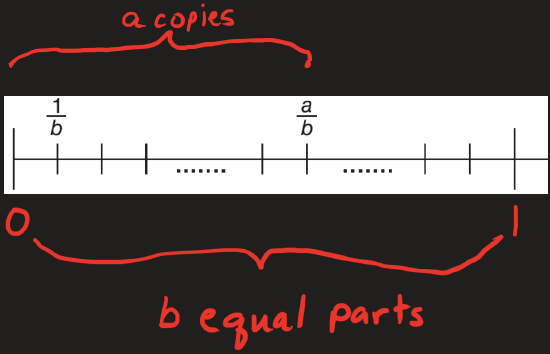

To locate \(\frac{a}{b}\), start at 0 and count a segments of length \(\frac{1}{b}\). The end of the ath segment marks the location of a/b.

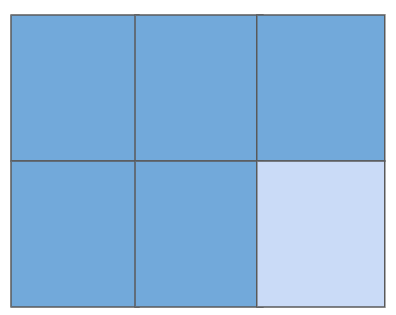

REGION/AREA MODEL - A shape is chosen to represent the unit and is then subdivided into equal parts. A fraction is visualized by coloring some of the parts as shown in the figure below.

FRACTION STRIPS (Bars) -
Here the unit is defined by a rectangular strip. A fraction \(\frac{a}{b}\) is modeled by shading a parts of the b equally sized subrectangles. Sample fraction strips are shown in figure below.

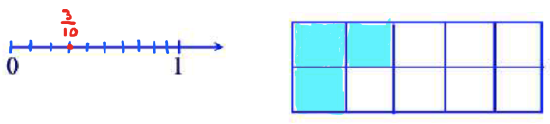

Explain how to complete each diagram below to represent \(\frac{3}{10}\).

- Answer
-

There are 3 different types of fractions:
• Proper Fractions - Proper fractions have the numerator part smaller than the denominator part, for example, \(\frac{2}{5}\).
• Improper Fractions - Improper fractions have the numerator part greater or equal to the denominator for example, \(\frac{7}{3}\).
• Mixed Fractions - Mixed fractions have a whole number plus a fraction, for example, 3\(\frac{1}{2}\).
Equivalent Fractions
Two fractions that represent the same relative amount are said to be equivalent fractions. As suggested by the fraction strips below, the fractions all represent the same relative amount as \(\frac{1}{3}\). And make a note that whole number 1 can be represented by a fraction \(\frac{1}{1}\).

Equivalent fractions are also located at the same point on a number line. The equivalence can be seen by their common location on the number line as seen below.

It is useful to have a simple test to determine whether fractions such as \(\frac{3}{4}\) and \(\frac{6}{8}\) represent the same relative amount without having to draw a picture of each representation.
Let \(\large\frac{a}{b}\) and \(\large\frac{c}{d}\) be any fractions. Then \(\large\frac{a}{b}\)=\(\large\frac{c}{d}\) if and only if ad= bc.
NOTE: Two fractions are equal fractions if and only if their cross-products, that is, products ad and bc obtained by cross-multiplication, are equal.
Let \(\large\frac{a}{b}\) be any fraction and n a nonzero whole number. Then \(\large\frac{a}{b}\)=\(\large\frac{an}{bn}\)=\(\large\frac{na}{nb}\).
Verify the following equations using the definition of fraction equality or the preceding theorem.
a) \(\large\frac{6}{14}\) =\(\large\frac{9}{21}\)
b) \(\large\frac{6}{21}\) =\(\large\frac{60}{210}\)
- Answer
-
a) (6 x 21) = (9 x 14) = 126, equivalent fractions.
b) \(\large\frac{60}{210}\) = \(\large\frac{30x2}{30x7}\)=\(\large\frac{2}{7}\) and \(\large\frac{6}{21}\) = \(\large\frac{3x2}{3x7}\)=\(\large\frac{2}{7}\), equivalent fractions.
Occasionally, the term reducing is used to describe the process in 6.2 example b). However, the term reducing can be misleading, since fractions are not reduced in size (the relative amount they represent) but only in complexity (the numerators and denominators are smaller). We use the term “simplify” or say 60/210 is in “simplified form” when it is written as 2/7.
Find the simplest form for each fraction.
a) \(\large\frac{72}{240}\)
b) \(\large\frac{9}{32}\)
c) \(\large\frac{399}{483}\)
- Answer
-
a) \(\large\frac{72}{240}\)=\(\large\frac{3x24}{10x24}\) = 3/10 b) 9/32 c) \(\large\frac{399}{483}\)=\(\large\frac{19x21}{23x21}\)=19/23
Ordering Fractions
🧠Let's Listen to Learn❤️
|
Before discussing these ideas with your peers, make sure to independently respond to the prompts. Task 1: Consider each fraction strip (1/2, 1/3, 1/4, 1/5, 1/6, 1/8, 1/9, 1/10, and 1/12). One fraction is bigger than another if it has more length than the other fraction. Compare them and put them in order from smallest to largest, and write them in order below, using the less than symbol ( < ). Where would 1/7 go? Task 2: Use fraction strips to compare 5/6, 5/8, 5/9, 5/10, and 5/12. Put them in order from smallest to largest using the less than symbol ( < ). Where would 5/7 go? Task 3: Use fraction strips to compare these fractions: 1/2, 2/3, 3/4, 4/5, 5/6, 7/8, 8/9, 9/10, and 11/12. Put them in order from smallest to largest using the less than symbol ( < ). Task 4: Discuss with your peers and explain any patterns you learned. |
![]() |
The concepts of less than and greater than in fractions are extensions of the respective whole-number concepts. As it was in the case of whole numbers and what you learned in the Think About and Discuss activity, the smaller of two fractions is to the left of the larger fraction on the fraction number line. Also, what we learned suggest the following definition, where fractions having common denominators can be compared simply by comparing their numerators (which are whole numbers).
Let \(\large\frac{a}{c}\) and \(\large\frac{b}{c}\) be any fractions. Then \(\large\frac{a}{c}\) < \(\large\frac{b}{c}\) if and only if a < b.
NOTE: Although the definition is stated for “less than,” a corresponding statement holds for “greater than.” Similar statements hold for “less than or equal to” and “greater than or equal to.”
Cross-Multiplication of Fraction Inequality
Let \(\large\frac{a}{b}\) and \(\large\frac{c}{d}\) be any fractions. Then \(\large\frac{a}{b}\)<\(\large\frac{c}{d}\) if and only if ad<bc.
Arrange in order.
a) \(\large\frac{7}{8}\) and \(\large\frac{9}{11}\)
b) \(\large\frac{2}{9}\) and \(\large\frac{7}{36}\)
b) \(\large\frac{17}{32}\) and \(\large\frac{19}{40}\)
- Answer
-
a) 7/8 > 9/11 b) 7/36 < 2/9 c) 19/40 < 17/32
Another COOL way to compare fractions - Dr. Howie Hua does it again.
https://youtu.be/7pbiKIYsWF0?si=NFS_08iO8gCRYqRG
Wonder, Play, Grow
Let's see what else Dr. Hua is up to? Work with your peers to find a fraction that is between \(\large\frac{3}{4}\) and \(\large\frac{4}{5}\). For an extra challenge, can you find more than one?


Using common denominators is great to find a fraction between two others. For example, 3/4 = 30/40 and 4/5 = 32/40. Therefore we know that 3/4 < 31/40 < 4/5. However there is simple technique of adding the numerators and denominators to determine a fraction between two other fractions.
Let \(\large\frac{a}{b}\) and \(\large\frac{c}{d}\) be any fractions where \(\large\frac{a}{b}\) < \(\large\frac{c}{d}\). Then
\(\large\frac{a}{b}\) < \(\large\frac{a+c}{b+d}\) <\(\large\frac{c}{d}\).
Find a fraction between these pairs of fractions.
a) \(\large\frac{7}{11}\) and \(\large\frac{8}{11}\)
b) \(\large\frac{9}{13}\) and \(\large\frac{12}{17}\)
- Answer
-
a) \(
\frac{7}{11} = \frac{14}{22} \quad \text{and} \quad \frac{8}{11} = \frac{16}{22}. \quad \text{Hence} \quad \frac{15}{22} \text{ is between } \frac{7}{11} \text{ and } \frac{8}{11}.
\)b) \(
\frac{9}{13} = \frac{9 \cdot 17}{13 \cdot 17} = \frac{153}{13 \cdot 17} \quad \text{and} \quad \frac{12}{17} = \frac{12 \cdot 13}{17 \cdot 13} = \frac{156}{17 \cdot 13}. \quad \text{Hence both } \frac{154}{13 \cdot 17} \text{ and } \frac{155}{13 \cdot 17} \text{ are between } \frac{9}{13} \text{ and } \frac{12}{17}.
\)
