A right triangle in which one angle is \( 30^{ \circ } \) and another angle is \( 60^{ \circ } \) is called a \( 30^{ \circ } \)-\( 60^{ \circ } \)-\( 90^{ \circ } \) triangle.

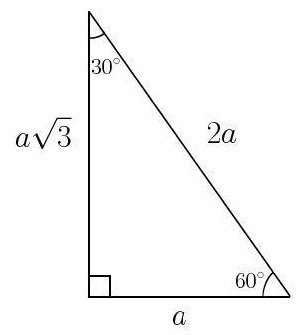

In any right triangle in which the two acute angles are \( 30^{ \circ } \) and \( 60^{ \circ } \), the hypotenuse is always twice the length of the shortest side (the side opposite the \( 30^{ \circ } \) angle), and the remaining side (opposite the \( 60^{ \circ } \) angle) is always \( \sqrt{3} \) times the shortest side.
- Proof
-
Consider an equilateral triangle with side lengths \( 2a \), as shown in the figure below.
Since this triangle is equilateral, each angle is \( 60^{ \circ } \). Drawing an altitude divides the triangle into two smaller triangles. Since the altitude is perpendicular to the base, each of these smaller triangles is a right triangle. Moreover, since one angle in each of these smaller right triangles is \( 60^{ \circ } \), the remaining angle must be \( 30^{ \circ } \). Furthermore, the side opposite the \( 30^{ \circ } \) angle must have length \( a \) (in the original equilateral triangle, the side opposite \( 60^{ \circ } \) had length \( 2a \), so it should make sense that the side opposite \( 30^{ \circ } \) is half of this). We now consider one of these smaller right triangles (see the figure below).
The missing side length, which we will call \( x \) for now, can be found using the Pythagorean Theorem.\[\begin{array}{rrcl}
& x^2 + a^2 & = & (2a)^2 \\
\implies & x^2 + a^2 & = & 4a^2 \\
\implies & x^2 & = & 3a^2 \\
\implies & x & = & a \sqrt{3} \\
\end{array} \nonumber \]
Since an isosceles right triangle has two angles that are \( 45^{ \circ } \), it is commonly called a \( 45^{ \circ } \)-\( 45^{ \circ } \)-\( 90^{ \circ } \) triangle.
In any right triangle in which the two acute angles are \( 45^{ \circ } \), the hypotenuse is always \( \sqrt{2} \) times the side length.
- Proof
-

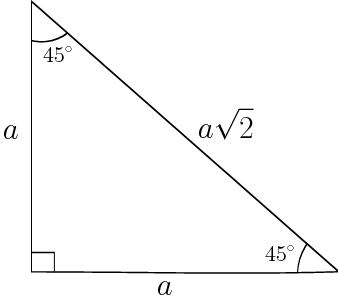

The sides opposite the \( 45^{ \circ } \) angles in a \( 45^{ \circ } \)-\( 45^{ \circ } \)-\( 90^{ \circ } \) triangle must have the same length. Let \( a \) be the lengths of these sides and \( x \) be the length of the hypotenuse, as shown in the figure below.
Since this is a right triangle, we can use the Pythagorean Theorem to find the length of the hypotenuse in terms of \( a \).\[\begin{array}{rrcl}
& a^2 + a^2 & = & x^2 \\
\implies & 2 a^2 & = & x^2 \\
\implies & a \sqrt{2} & = & x \\
\end{array} \nonumber \]
