1.1.2: Naming the Moves

Lesson

Let's be more precise about describing moves of figures in the plane.

Exercise \(\PageIndex{1}\): A Pair of Quadrilaterals

Quadrilateral A can be rotated into the position of Quadrilateral B.

Figure \(\PageIndex{1}\)

Estimate the angle of rotation.

Exercise \(\PageIndex{2}\): How Did You Make That Move?

Here is another set of dance moves.

Figure \(\PageIndex{2}\)

1. Describe each move or say if it is a new move.
   1. Frame 1 to Frame 2
   2. Frame 2 to Frame 3
   3. Frame 3 to Frame 4
   4. Frame 4 to Frame 5
   5. Frame 5 to Frame 6
2. How would you describe the new move?

Exercise \(\PageIndex{3}\): Card Sort: Move

Your teacher will give you a set of cards. Sort the cards into categories according to the type of move they show. Be prepared to describe each category and why it is different from the others. You can explore the applets below to see the ways the images move.

Drag the red point. Explore how the image changes.

Click on the box to show the transformed image. Move the yellow points and the red segment to see how the image changes.

Summary

Here are the moves we have learned about so far:

• A translation slides a figure without turning it. Every point in the figure goes the same distance in the same direction. For example, Figure A was translated down and to the left, as shown by the arrows. Figure B is a translation of Figure A.

Figure \(\PageIndex{3}\)

• A rotation turns a figure about a point, called the center of the rotation. Every point on the figure goes in a circle around the center and makes the same angle. The rotation can be clockwise, going in the same direction as the hands of a clock, or counterclockwise, going in the other direction. For example, Figure A was rotated \(45^{\circ}\) clockwise around its bottom vertex. Figure C is a rotation of Figure A.

Figure \(\PageIndex{4}\)

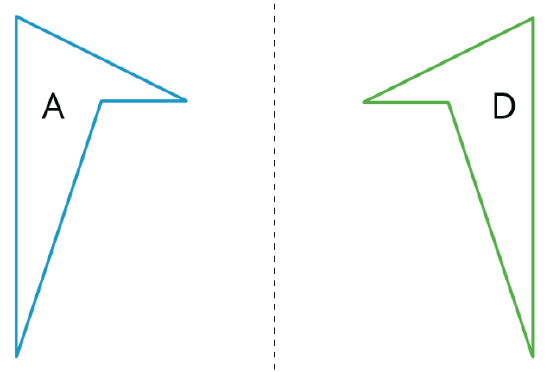

• A reflection places points on the opposite side of a reflection line. The mirror image is a backwards copy of the original figure. The reflection line shows where the mirror should stand. For example, Figure A was reflected across the dotted line. Figure D is a reflection of Figure A.

Figure \(\PageIndex{5}\)

We use the word image to describe the new figure created by moving the original figure. If one point on the original figure moves to another point on the new figure, we call them corresponding points.

Glossary Entries

Definition: Clockwise

An object is rotating clockwise if it is turning in the same way that the hour or minute hand goes around a clock.

The tilted square is rotated \(15^{\circ}\) clockwise from the square sitting horizontally on its base.

Figure \(\PageIndex{6}\)

Definition: Corresponding

If a part of the original figure matches up with a part of the copy, we call them corresponding parts. The part could be an angle, point, or side, and you can have corresponding angles, corresponding points, or corresponding sides.

If you have a distance between two points in the original figure, then the distance between the corresponding points in the copy is called the corresponding distance.

Definition: Counterclockwise

An object is rotating counterclockwise if it is turning in the opposite way to the way that the hour or minute hand goes around a clock.

The tilted square is rotated \(15^{\circ}\) counterclockwise from the square with a horizontal base.

Figure \(\PageIndex{7}\)

Definition: Image

Translations, rotations, and reflections move objects in the plane. Points, segments, and other parts of the original all have corresponding parts on the “moved object.” The moved object is called the image.

For example, here is triangle \(ABC\) and a translation to the right and up which is labeled \(DEF\).

Point \(F\) in the image corresponds to point \(C\), segment \(EF\) in the image corresponds to segment \(BD\), and angle \(DEF\) corresponds to angle \(ABC\).

Figure \(\PageIndex{8}\)

Definition: Reflection

The reflection of a figure across a line takes every point of the figure to a point directly opposite to it on the other side of the line and the same distance from the line. In the figure, the triangle \(B\) is the reflection of the triangle \(A\) across the line \(l\).

Figure \(\PageIndex{9}\)

Definition: Rotation

A rotation has a center, an angle, and a direction. It moves every point of a figure in a circle around the center, in the direction specified (clockwise or counterclockwise), and for a distance specified by the angle. For example, in the figure, triangle \(A\) is rotated \(55^{\circ}\) clockwise about center \(O\) to get triangle \(B\).

Figure \(\PageIndex{10}\)

Definition: Translation

A translation has a distance and a direction. It moves every point in a figure the given distance in the given direction.

The figure on the left is translated to the figure on the right in the direction from \(A\) to \(B\), using the distance from \(A\) to \(B\).

Figure \(\PageIndex{11}\)

Practice

Exercise \(\PageIndex{4}\)

Each of the six cards shows a shape.

Figure \(\PageIndex{12}\)

1. Which pair of cards shows a shape and its image after a rotation?
2. Which pair of cards shows a shape and its image after a reflection?

Exercise \(\PageIndex{5}\)

The five frames show a shape's different positions.

Figure \(\PageIndex{13}\)

Describe how the shape moves to get from its position in each frame to the next.

Exercise \(\PageIndex{6}\)

The rectangle seen in Frame 1 is rotated to a new position, seen in Frame 2.

Figure \(\PageIndex{14}\): A figure of rectangular Frame 1 and Frame 2, each with a rectangle. Frame 1 rectangle has sides parallel to the frame. Frame 2 rectangle has the left side down, the right side raised and no sides parallel to the frame.

Select all the ways the rectangle could have been rotated to get from Frame 1 to Frame 2.

A: 40 degrees clockwise

B: 40 degrees counterclockwise

C: 90 degrees clockwise

D: 90 degrees counterclockwise

E: 140 degrees clockwise

F: 140 degrees counterclockwise

(From Unit 1.1.1)
