7.2.3: Triangles with 3 Common Measures

Lesson

Let's contrast triangles.

Exercise \(\PageIndex{1}\): 3 Sides; 3 Angles

Examine each set of triangles. What do you notice? What is the same about the triangles in the set? What is different?

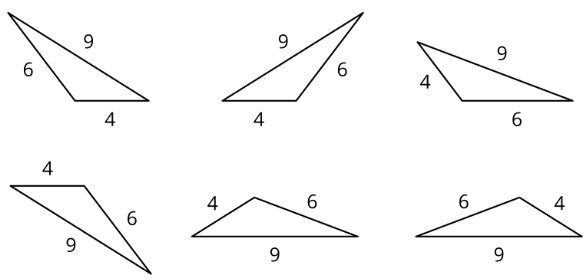

Set 1:

Figure \(\PageIndex{1}\)

Set 2:

Figure \(\PageIndex{2}\)

Exercise \(\PageIndex{2}\): 2 Sides and 1 Angle

Examine this set of triangles.

Figure \(\PageIndex{3}\)

1. What is the same about the triangles in the set? What is different?
2. How many different triangles are there? Explain or show your reasoning.

Exercise \(\PageIndex{3}\): 2 Angles and 1 Side

Examine this set of triangles.

Figure \(\PageIndex{4}\)

1. What is the same about the triangles in the set? What is different?
2. How many different triangles are there? Explain or show your reasoning.

Summary

Both of these quadrilaterals have a right angle and side lengths 4 and 5.

Figure \(\PageIndex{5}\): Two quadrilaterals each with two given side lengths labeled 4 and 5, and a right angle. On the left, the quadrilaterial is a rectangle with the right angle between adjacent side lengths 4 and 5. On the right, the quadrilateral is a trapezoid with the bottom base labeled 5 and one leg labeled 4. There is a right angle between the bottom base and the leg not labeled.

However, in one case, the right angle is between the two given side lengths; in the other, it is not.

If we create two triangles with three equal measures, but these measures are not next to each other in the same order, that usually means the triangles are different. Here is an example:

Figure \(\PageIndex{6}\): Two triangles. The triangle on the left has the angle labeled 32 degrees between the adjacent side lengths 5 and 6. The triangle on the right has the angle labeled 32 degrees between the side length labeled 5 and the third side of the triangle that is not labeled.

Practice

Exercise \(\PageIndex{4}\)

Are these two triangles identical? Explain how you know.

Figure \(\PageIndex{7}\)

Exercise \(\PageIndex{5}\)

Are these triangles identical? Explain your reasoning.

Figure \(\PageIndex{8}\): Two triangles shown that share one side. Starting from the bottom left angle, going clockwise, the triangle on the left has the angle measurements of 40 degrees, 70 degrees, and 70 degrees. The triangle on the right, starting at the top angle and going clockwise, has the angle measurements of 40 degrees, 70 degrees, and 70 degrees.

Exercise \(\PageIndex{6}\)

Tyler claims that if two triangles each have a side length of 11 units and a side length of 8 units, and also an angle measuring \(100^{\circ}\), they must be identical to each other. Do you agree? Explain your reasoning.

Exercise \(\PageIndex{7}\)

The markings on the number line are equally spaced. Label the other markings on the number line.

Figure \(\PageIndex{9}\)

(From Unit 5.3.1)

Exercise \(\PageIndex{8}\)

A passenger on a ship dropped his camera into the ocean. If it is descending at a rate of -4.2 meters per second, how long until it hits the bottom of the ocean, which is at -1,875 meters?

(From Unit 5.3.2)

Exercise \(\PageIndex{9}\)

Apples cost $1.99 per pound.

1. How much do \(3\frac{1}{4}\) pounds of apples cost?
2. How much do \(x\) pounds of apples cost?
3. Clare spent $5.17 on apples. How many pounds of apples did Clare buy?

(From Unit 4.1.3)

Exercise \(\PageIndex{10}\)

Diego has a glue stick with a diameter of 0.7 inches. He sets it down 3.5 inches away from the edge of the table, but it rolls onto the floor. How many rotations did the glue stick make before it fell off of the table?

(From Unit 3.1.5)
