    Learning Objectives

    In this section, you will:

    • Find function values for the sine and cosine of 30° or ( π 6 ),45° or ( π 4 ) 30° or ( π 6 ),45° or ( π 4 ) and 60° or ( π 3 ). 60° or ( π 3 ).
    • Identify the domain and range of sine and cosine functions.
    • Use reference angles to evaluate trigonometric functions.
    Photo of a ferris wheel.
    Figure 1 The Singapore Flyer is the world’s tallest Ferris wheel. (credit: “Vibin JK”/Flickr)

    Looking for a thrill? Then consider a ride on the Singapore Flyer, the world’s tallest Ferris wheel. Located in Singapore, the Ferris wheel soars to a height of 541 feet—a little more than a tenth of a mile! Described as an observation wheel, riders enjoy spectacular views as they travel from the ground to the peak and down again in a repeating pattern. In this section, we will examine this type of revolving motion around a circle. To do so, we need to define the type of circle first, and then place that circle on a coordinate system. Then we can discuss circular motion in terms of the coordinate pairs.

    Finding Function Values for the Sine and Cosine

    To define our trigonometric functions, we begin by drawing a unit circle, a circle centered at the origin with radius 1, as shown in Figure 2. The angle (in radians) that t t intercepts forms an arc of length s. s. Using the formula s=rt, s=rt, and knowing that r=1, r=1, we see that for a unit circle, s=t. s=t.

    Recall that the x- and y-axes divide the coordinate plane into four quarters called quadrants. We label these quadrants to mimic the direction a positive angle would sweep. The four quadrants are labeled I, II, III, and IV.

    For any angle t, t, we can label the intersection of the terminal side and the unit circle as by its coordinates, ( x,y ). ( x,y ). The coordinates x x and y y will be the outputs of the trigonometric functions f(t)=cost f(t)=cost and f(t)=sint, f(t)=sint, respectively. This means x=cost x=cost and y=sint. y=sint.

    Graph of a circle with angle t, radius of 1, and an arc created by the angle with length s. The terminal side of the angle intersects the circle at the point (x,y).
    Figure 2 Unit circle where the central angle is t t radians

    Unit Circle

    A unit circle has a center at (0,0) (0,0) and radius 1 1. In a unit circle, the length of the intercepted arc is equal to the radian measure of the central angle t. t.

    Let ( x,y ) ( x,y ) be the endpoint on the unit circle of an arc of arc length s. s. The ( x,y ) ( x,y ) coordinates of this point can be described as functions of the angle.

    Defining Sine and Cosine Functions

    Now that we have our unit circle labeled, we can learn how the ( x,y ) ( x,y ) coordinates relate to the arc length and angle. The sine function relates a real number t t to the y-coordinate of the point where the corresponding angle intercepts the unit circle. More precisely, the sine of an angle t t equals the y-value of the endpoint on the unit circle of an arc of length t. t. In Figure 2, the sine is equal to y. y. Like all functions, the sine function has an input and an output. Its input is the measure of the angle; its output is the y-coordinate of the corresponding point on the unit circle.

    The cosine function of an angle t t equals the x-value of the endpoint on the unit circle of an arc of length t. t. In Figure 3, the cosine is equal to x. x.

    Illustration of an angle t, with terminal side length equal to 1, and an arc created by angle with length t. The terminal side of the angle intersects the circle at the point (x,y), which is equivalent to (cos t, sin t).
    Figure 3

    Because it is understood that sine and cosine are functions, we do not always need to write them with parentheses: sint sint is the same as sin(t) sin(t) and cost cost is the same as cos(t). cos(t). Likewise, cos 2 t cos 2 t is a commonly used shorthand notation for (cos(t)) 2 . (cos(t)) 2 . Be aware that many calculators and computers do not recognize the shorthand notation. When in doubt, use the extra parentheses when entering calculations into a calculator or computer.

    Sine and Cosine Functions

    If t t is a real number and a point ( x,y ) ( x,y ) on the unit circle corresponds to an angle of t, t, then

    cost=x cost=x

    sint=y sint=y

    How To

    Given a point P (x,y) (x,y) on the unit circle corresponding to an angle of t, t, find the sine and cosine.

    1. The sine of t t is equal to the y-coordinate of point P:sint=y. P:sint=y.
    2. The cosine of t t is equal to the x-coordinate of point P:cost=x. P:cost=x.

    Example 1

    Finding Function Values for Sine and Cosine

    Point P P is a point on the unit circle corresponding to an angle of t, t, as shown in Figure 4. Find cos(t) cos(t) and sin(t). sin(t).

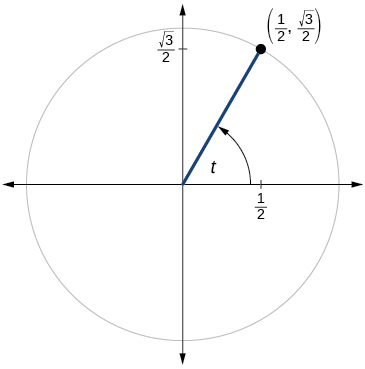

    Graph of a circle with angle t, radius of 1, and a terminal side that intersects the circle at the point (1/2, square root of 3 over 2).
    Figure 4
    Answer

    We know that cost cost is the x-coordinate of the corresponding point on the unit circle and sint sint is the y-coordinate of the corresponding point on the unit circle. So:

    x=cost= 1 2 y=sint= 3 2 x=cost= 1 2 y=sint= 3 2

    Try It #1

    A certain angle t t corresponds to a point on the unit circle at ( 2 2 , 2 2 ) ( 2 2 , 2 2 ) as shown in Figure 5. Find cost cost and sint. sint.

    Graph of a circle with angle t, radius of 1, and a terminal side that intersects the circle at the point (negative square root of 2 over 2, square root of 2 over 2).
    Figure 5

    Finding Sines and Cosines of Angles on an Axis

    For quadrantral angles, the corresponding point on the unit circle falls on the x- or y-axis. In that case, we can easily calculate cosine and sine from the values of x x and y. y.

    Example 2

    Calculating Sines and Cosines along an Axis

    Find cos(90°) cos(90°) and sin(90°). sin(90°).

    Answer

    Moving 90° 90° counterclockwise around the unit circle from the positive x-axis brings us to the top of the circle, where the (x,y) (x,y) coordinates are (0, 1), as shown in Figure 6.

    Graph of a circle with angle t, radius of 1, and a terminal side that intersects the circle at the point (0,1).
    Figure 6

    Using our definitions of cosine and sine,

    x=cost=cos(90°)=0 y=sint=sin(90°)=1 x=cost=cos(90°)=0 y=sint=sin(90°)=1

    The cosine of 90° is 0; the sine of 90° is 1.

    Try It #2

    Find cosine and sine of the angle π. π.

    The Pythagorean Identity

    Now that we can define sine and cosine, we will learn how they relate to each other and the unit circle. Recall that the equation for the unit circle is x 2 + y 2 =1. x 2 + y 2 =1. Because x=cost x=cost and y=sint, y=sint, we can substitute for x x and y y to get cos 2 t+ sin 2 t=1. cos 2 t+ sin 2 t=1. This equation, cos 2 t+ sin 2 t=1, cos 2 t+ sin 2 t=1, is known as the Pythagorean Identity. See Figure 7.

    Graph of an angle t, with a point (x,y) on the unit circle. And equation showing the equivalence of 1, x^2 + y^2, and cos^2 t + sin^2 t.
    Figure 7

    We can use the Pythagorean Identity to find the cosine of an angle if we know the sine, or vice versa. However, because the equation yields two solutions, we need additional knowledge of the angle to choose the solution with the correct sign. If we know the quadrant where the angle is, we can easily choose the correct solution.

    Pythagorean Identity

    The Pythagorean Identity states that, for any real number t, t,

    cos 2 t+ sin 2 t=1 cos 2 t+ sin 2 t=1

    How To

    Given the sine of some angle t t and its quadrant location, find the cosine of t. t.

    1. Substitute the known value of sin( t ) sin( t ) into the Pythagorean Identity.
    2. Solve for cos( t ). cos( t ).
    3. Choose the solution with the appropriate sign for the x-values in the quadrant where t t is located.

    Example 3

    Finding a Cosine from a Sine or a Sine from a Cosine

    If sin(t)= 3 7 sin(t)= 3 7 and t t is in the second quadrant, find cos(t). cos(t).

    Answer

    If we drop a vertical line from the point on the unit circle corresponding to t, t, we create a right triangle, from which we can see that the Pythagorean Identity is simply one case of the Pythagorean Theorem. See Figure 8.

    Graph of a unit circle with an angle that intersects the circle at a point with the y-coordinate equal to 3/7.
    Figure 8

    Substituting the known value for sine into the Pythagorean Identity,

    cos 2 (t)+ sin 2 (t)=1 cos 2 (t)+ 9 49 =1 cos 2 (t)= 40 49 cos(t)=± 40 49 =± 40 7 =± 2 10 7 cos 2 (t)+ sin 2 (t)=1 cos 2 (t)+ 9 49 =1 cos 2 (t)= 40 49 cos(t)=± 40 49 =± 40 7 =± 2 10 7

    Because the angle is in the second quadrant, we know the x-value is a negative real number, so the cosine is also negative. So cos(t)= 2 10 7 cos(t)= 2 10 7

    Try It #3

    If cos(t)= 24 25 cos(t)= 24 25 and t t is in the fourth quadrant, find sin(t). sin(t).

    Finding Sines and Cosines of Special Angles

    We have already learned some properties of the special angles, such as the conversion from radians to degrees. We can also calculate sines and cosines of the special angles using the Pythagorean Identity and our knowledge of triangles.

    Finding Sines and Cosines of 45° Angles

    First, we will look at angles of 45° 45° or π 4 , π 4 , as shown in Figure 9 . A 45°45°90° 45°45°90° triangle is an isosceles triangle, so the x- and y-coordinates of the corresponding point on the circle are the same. Because the x- and y-values are the same, the sine and cosine values will also be equal.

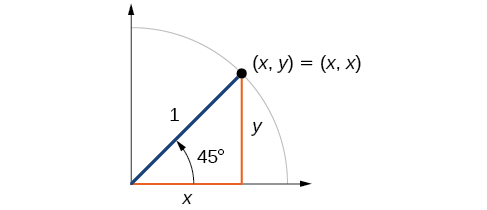

    Graph of 45 degree angle inscribed within a circle with radius of 1. Equivalence between point (x,y) and (x,x) shown.
    Figure 9

    At t= π 4 t= π 4 , which is 45 degrees, the radius of the unit circle bisects the first quadrantal angle. This means the radius lies along the line y=x. y=x. A unit circle has a radius equal to 1. So, the right triangle formed below the line y=x y=x has sides x x and y(y=x), y(y=x), and a radius = 1. See Figure 10.

    Graph of circle with pi/4 angle inscribed and a radius of 1.
    Figure 10

    From the Pythagorean Theorem we get

    x 2 + y 2 =1 x 2 + y 2 =1

    Substituting y=x, y=x, we get

    x 2 + x 2 =1 x 2 + x 2 =1

    Combining like terms we get

    2 x 2 =1 2 x 2 =1

    And solving for x, x, we get

    x 2 = 1 2 x=± 1 2 x 2 = 1 2 x=± 1 2

    In quadrant I, x= 1 2 . x= 1 2 .

    At t= π 4 t= π 4 or 45 degrees,

    (x,y)=(x,x)=( 1 2 , 1 2 ) x= 1 2 ,y= 1 2 cost= 1 2 ,sint= 1 2 (x,y)=(x,x)=( 1 2 , 1 2 ) x= 1 2 ,y= 1 2 cost= 1 2 ,sint= 1 2

    If we then rationalize the denominators, we get

    cost= 1 2 2 2 = 2 2 sint= 1 2 2 2 = 2 2 cost= 1 2 2 2 = 2 2 sint= 1 2 2 2 = 2 2

    Therefore, the (x,y) (x,y) coordinates of a point on a circle of radius 1 1 at an angle of 45° 45° are ( 2 2 , 2 2 ). ( 2 2 , 2 2 ).

    Finding Sines and Cosines of 30° and 60° Angles

    Next, we will find the cosine and sine at an angle of 30°, 30°, or π 6 π 6 . First, we will draw a triangle inside a circle with one side at an angle of 30°, 30°, and another at an angle of −30°, −30°, as shown in Figure 11. If the resulting two right triangles are combined into one large triangle, notice that all three angles of this larger triangle will be 60°, 60°, as shown in Figure 12.

    Graph of a circle with 30 degree angle and negative 30 degree angle inscribed to form a trangle.
    Figure 11
    Image of two 30/60/90 triangles back to back. Label for hypoteneuse r and side y.
    Figure 12

    Because all the angles are equal, the sides are also equal. The vertical line has length 2y, 2y, and since the sides are all equal, we can also conclude that r=2y r=2y or y= 1 2 r. y= 1 2 r. Since sint=y sint=y,

    sin( π 6 )= 1 2 r sin( π 6 )= 1 2 r

    And since r=1 r=1 in our unit circle,

    sin( π 6 )= 1 2 (1) = 1 2 sin( π 6 )= 1 2 (1) = 1 2

    Using the Pythagorean Identity, we can find the cosine value.

    cos 2 π 6 + sin 2 ( π 6 )=1 cos 2 ( π 6 )+ ( 1 2 ) 2 =1 cos 2 ( π 6 )= 3 4 Use the square root property. cos( π 6 )= ± 3 ± 4 = 3 2 Since y is positive, choose the positive root. cos 2 π 6 + sin 2 ( π 6 )=1 cos 2 ( π 6 )+ ( 1 2 ) 2 =1 cos 2 ( π 6 )= 3 4 Use the square root property. cos( π 6 )= ± 3 ± 4 = 3 2 Since y is positive, choose the positive root.

    The (x,y) (x,y) coordinates for the point on a circle of radius 1 1 at an angle of 30° 30° are ( 3 2 , 1 2 ). ( 3 2 , 1 2 ). At t= π 3 t= π 3 (60°), the radius of the unit circle, 1, serves as the hypotenuse of a 30-60-90 degree right triangle, BAD, BAD, as shown in Figure 13. Angle A A has measure 60°. 60°. At point B, B, we draw an angle ABC ABC with measure of 60°. 60°. We know the angles in a triangle sum to 180°, 180°, so the measure of angle C C is also 60°. 60°. Now we have an equilateral triangle. Because each side of the equilateral triangle ABC ABC is the same length, and we know one side is the radius of the unit circle, all sides must be of length 1.

    Graph of circle with an isoceles triangle inscribed.
    Figure 13

    The measure of angle ABD ABD is 30°. So, if double, angle ABC ABC is 60°. BD BD is the perpendicular bisector of AC, AC, so it cuts AC AC in half. This means that AD AD is 1 2 1 2 the radius, or 1 2 . 1 2 . Notice that AD AD is the x-coordinate of point B, B, which is at the intersection of the 60° angle and the unit circle. This gives us a triangle BAD BAD with hypotenuse of 1 and side x x of length 1 2 . 1 2 .

    From the Pythagorean Theorem, we get

    x 2 + y 2 =1 x 2 + y 2 =1

    Substituting x= 1 2 , x= 1 2 , we get

    ( 1 2 ) 2 + y 2 =1 ( 1 2 ) 2 + y 2 =1

    Solving for y, y, we get

    1 4 + y 2 =1 y 2 =1 1 4 y 2 = 3 4 y=± 3 2 1 4 + y 2 =1 y 2 =1 1 4 y 2 = 3 4 y=± 3 2

    Since t= π 3 t= π 3 has the terminal side in quadrant I where the y-coordinate is positive, we choose y= 3 2 , y= 3 2 , the positive value.

    At t= π 3 t= π 3 (60°), the (x,y) (x,y) coordinates for the point on a circle of radius 1 1 at an angle of 60° 60° are ( 1 2 , 3 2 ), ( 1 2 , 3 2 ), so we can find the sine and cosine.

    (x,y)=( 1 2 , 3 2 ) x= 1 2 ,y= 3 2 cost= 1 2 ,sint= 3 2 (x,y)=( 1 2 , 3 2 ) x= 1 2 ,y= 3 2 cost= 1 2 ,sint= 3 2

    We have now found the cosine and sine values for all of the most commonly encountered angles in the first quadrant of the unit circle. Table 1 summarizes these values.

    Angle 0 π 6 , π 6 , or 30 π 4 , π 4 , or 45° π 3 , π 3 , or 60° π 2 , π 2 , or 90°
    Cosine 1 3 2 3 2 2 2 2 2 1 2 1 2 0
    Sine 0 1 2 1 2 2 2 2 2 3 2 3 2 1
    Table 1

    Figure 14 shows the common angles in the first quadrant of the unit circle.

    Graph of a quarter circle with angles of 0, 30, 45, 60, and 90 degrees inscribed. Equivalence of angles in radians shown. Points along circle are marked.
    Figure 14

    Using a Calculator to Find Sine and Cosine

    To find the cosine and sine of angles other than the special angles, we turn to a computer or calculator. Be aware: Most calculators can be set into “degree” or “radian” mode, which tells the calculator the units for the input value. When we evaluate cos(30) cos(30) on our calculator, it will evaluate it as the cosine of 30 degrees if the calculator is in degree mode, or the cosine of 30 radians if the calculator is in radian mode.

    How To

    Given an angle in radians, use a graphing calculator to find the cosine.

    1. If the calculator has degree mode and radian mode, set it to radian mode.
    2. Press the COS key.
    3. Enter the radian value of the angle and press the close-parentheses key ")".
    4. Press ENTER.

    Example 4

    Using a Graphing Calculator to Find Sine and Cosine

    Evaluate cos( 5π 3 ) cos( 5π 3 ) using a graphing calculator or computer.

    Answer

    Enter the following keystrokes:

    COS (5×π÷3) (5×π÷3) ENTER

    cos( 5π 3 )=0.5 cos( 5π 3 )=0.5

    Analysis

    We can find the cosine or sine of an angle in degrees directly on a calculator with degree mode. For calculators or software that use only radian mode, we can find the sine of 20°, 20°, for example, by including the conversion factor to radians as part of the input:

    SIN ( 20 × π ÷ 180 ) ( 20 × π ÷ 180 ) ENTER

    Try It #4

    Evaluate sin( π 3 ). sin( π 3 ).

    Identifying the Domain and Range of Sine and Cosine Functions

    Now that we can find the sine and cosine of an angle, we need to discuss their domains and ranges. What are the domains of the sine and cosine functions? That is, what are the smallest and largest numbers that can be inputs of the functions? Because angles smaller than 0 and angles larger than 2π 2π can still be graphed on the unit circle and have real values of x, y, x, y, and r, r, there is no lower or upper limit to the angles that can be inputs to the sine and cosine functions. The input to the sine and cosine functions is the rotation from the positive x-axis, and that may be any real number.

    What are the ranges of the sine and cosine functions? What are the least and greatest possible values for their output? We can see the answers by examining the unit circle, as shown in Figure 15. The bounds of the x-coordinate are [−1,1]. [−1,1]. The bounds of the y-coordinate are also [−1,1]. [−1,1]. Therefore, the range of both the sine and cosine functions is [−1,1]. [−1,1].

    Graph of unit circle.
    Figure 15

    Finding Reference Angles

    We have discussed finding the sine and cosine for angles in the first quadrant, but what if our angle is in another quadrant? For any given angle in the first quadrant, there is an angle in the second quadrant with the same sine value. Because the sine value is the y-coordinate on the unit circle, the other angle with the same sine will share the same y-value, but have the opposite x-value. Therefore, its cosine value will be the opposite of the first angle’s cosine value.

    Likewise, there will be an angle in the fourth quadrant with the same cosine as the original angle. The angle with the same cosine will share the same x-value but will have the opposite y-value. Therefore, its sine value will be the opposite of the original angle’s sine value.

    As shown in Figure 16, angle α α has the same sine value as angle t; t; the cosine values are opposites. Angle β β has the same cosine value as angle t; t; the sine values are opposites.

    sin(t)=sin(α) and cos(t)=cos(α) sin(t)=sin(β) and cos(t)=cos(β) sin(t)=sin(α) and cos(t)=cos(α) sin(t)=sin(β) and cos(t)=cos(β)

    Graph of two side by side circles. First graph has circle with angle t and angle alpha with radius r. Second graph has circle with angle t and angle beta inscribed with radius r.
    Figure 16

    Recall that an angle’s reference angle is the acute angle, t, t, formed by the terminal side of the angle t t and the horizontal axis. A reference angle is always an angle between 0 0 and 90°, 90°, or 0 0 and π 2 π 2 radians. As we can see from Figure 17, for any angle in quadrants II, III, or IV, there is a reference angle in quadrant I.

    Four side by side graphs. First graph shows an angle of t in quadrant 1 in it's normal position. Second graph shows an angle of t in quadrant 2 due to a rotation of pi minus t. Third graph shows an angle of t in quadrant 3 due to a rotation of t minus pi. Fourth graph shows an angle of t in quadrant 4 due to a rotation of two pi minus t.
    Figure 17

    How To

    Given an angle between 0 0 and 2π, 2π, find its reference angle.

    1. An angle in the first quadrant is its own reference angle.
    2. For an angle in the second or third quadrant, the reference angle is | πt | | πt | or | 180°−t |. | 180°−t |.
    3. For an angle in the fourth quadrant, the reference angle is 2πt 2πt or 360°−t. 360°−t.
    4. If an angle is less than 0 0 or greater than 2π, 2π, add or subtract 2π 2π as many times as needed to find an equivalent angle between 0 0 and 2π. 2π.

    Example 5

    Finding a Reference Angle

    Find the reference angle of 225° 225° as shown in Figure 18.

    Graph of circle with 225 degree angle inscribed.
    Figure 18
    Answer

    Because 225° 225° is in the third quadrant, the reference angle is

    | ( 180°−225° ) |=| 45° |=45° | ( 180°−225° ) |=| 45° |=45°

    Try It #5

    Find the reference angle of 5π 3 . 5π 3 .

    Using Reference Angles

    Now let’s take a moment to reconsider the Ferris wheel introduced at the beginning of this section. Suppose a rider snaps a photograph while stopped twenty feet above ground level. The rider then rotates three-quarters of the way around the circle. What is the rider’s new elevation? To answer questions such as this one, we need to evaluate the sine or cosine functions at angles that are greater than 90 degrees or at a negative angle. Reference angles make it possible to evaluate trigonometric functions for angles outside the first quadrant. They can also be used to find ( x,y ) ( x,y ) coordinates for those angles. We will use the reference angle of the angle of rotation combined with the quadrant in which the terminal side of the angle lies.

    Using Reference Angles to Evaluate Trigonometric Functions

    We can find the cosine and sine of any angle in any quadrant if we know the cosine or sine of its reference angle. The absolute values of the cosine and sine of an angle are the same as those of the reference angle. The sign depends on the quadrant of the original angle. The cosine will be positive or negative depending on the sign of the x-values in that quadrant. The sine will be positive or negative depending on the sign of the y-values in that quadrant.

    Using Reference Angles to Find Cosine and Sine

    Angles have cosines and sines with the same absolute value as cosines and sines of their reference angles. The sign (positive or negative) can be determined from the quadrant of the angle.

    How To

    Given an angle in standard position, find the reference angle, and the cosine and sine of the original angle.

    1. Measure the angle between the terminal side of the given angle and the horizontal axis. That is the reference angle.
    2. Determine the values of the cosine and sine of the reference angle.
    3. Give the cosine the same sign as the x-values in the quadrant of the original angle.
    4. Give the sine the same sign as the y-values in the quadrant of the original angle.

    Example 6

    Using Reference Angles to Find Sine and Cosine

    1. Using a reference angle, find the exact value of cos(150°) cos(150°) and sin(150°). sin(150°).
    2. Using the reference angle, find cos 5π 4 cos 5π 4 and sin 5π 4 . sin 5π 4 .
    Answer

    1. 150° is located in the second quadrant. The angle it makes with the x-axis is 180° − 150° = 30°, so the reference angle is 30°.

      This tells us that 150° has the same sine and cosine values as 30°, except for the sign. We know that

      cos(30°)= 3 2 andsin(30°)= 1 2 . cos(30°)= 3 2 andsin(30°)= 1 2 .

      Since 150° is in the second quadrant, the x-coordinate of the point on the circle is negative, so the cosine value is negative. The y-coordinate is positive, so the sine value is positive.

      cos(150°)= 3 2 andsin(150°)= 1 2 cos(150°)= 3 2 andsin(150°)= 1 2

    2. 5π 4 5π 4 is in the third quadrant. Its reference angle is 5π 4 π= π 4 . 5π 4 π= π 4 . The cosine and sine of π 4 π 4 are both 2 2 . 2 2 . In the third quadrant, both x x and y y are negative, so:

      cos 5π 4 = 2 2 andsin 5π 4 = 2 2 cos 5π 4 = 2 2 andsin 5π 4 = 2 2

    Try It #6

    1. Use the reference angle of 315° 315° to find cos(315°) cos(315°) and sin(315°). sin(315°).
    2. Use the reference angle of π 6 π 6 to find cos( π 6 ) cos( π 6 ) and sin( π 6 ). sin( π 6 ).

    Using Reference Angles to Find Coordinates

    Now that we have learned how to find the cosine and sine values for special angles in the first quadrant, we can use symmetry and reference angles to fill in cosine and sine values for the rest of the special angles on the unit circle. They are shown in Figure 19. Take time to learn the (x,y) (x,y) coordinates of all of the major angles in the first quadrant.

    Graph of unit circle with angles in degrees, angles in radians, and points along the circle inscribed.
    Figure 19 Special angles and coordinates of corresponding points on the unit circle

    In addition to learning the values for special angles, we can use reference angles to find ( x,y ) ( x,y ) coordinates of any point on the unit circle, using what we know of reference angles along with the identities

    x=cost y=sint x=cost y=sint

    First we find the reference angle corresponding to the given angle. Then we take the sine and cosine values of the reference angle, and give them the signs corresponding to the y- and x-values of the quadrant.

    How To

    Given the angle of a point on a circle and the radius of the circle, find the (x,y) (x,y) coordinates of the point.

    1. Find the reference angle by measuring the smallest angle to the x-axis.
    2. Find the cosine and sine of the reference angle.
    3. Determine the appropriate signs for x x and y y in the given quadrant.

    Example 7

    Using the Unit Circle to Find Coordinates

    Find the coordinates of the point on the unit circle at an angle of 7π 6 . 7π 6 .

    Answer

    We know that the angle 7π 6 7π 6 is in the third quadrant.

    First, let’s find the reference angle by measuring the angle to the x-axis. To find the reference angle of an angle whose terminal side is in quadrant III, we find the difference of the angle and π. π.

    7π 6 π= π 6 7π 6 π= π 6

    Next, we will find the cosine and sine of the reference angle:

    cos( π 6 )= 3 2 sin( π 6 )= 1 2 cos( π 6 )= 3 2 sin( π 6 )= 1 2

    We must determine the appropriate signs for x and y in the given quadrant. Because our original angle is in the third quadrant, where both x x and y y are negative, both cosine and sine are negative.

    cos( 7π 6 )= 3 2 sin( 7π 6 )= 1 2 cos( 7π 6 )= 3 2 sin( 7π 6 )= 1 2

    Now we can calculate the ( x,y ) ( x,y ) coordinates using the identities x=cosθ x=cosθ and y=sinθ. y=sinθ.

    The coordinates of the point are ( 3 2 , 1 2 ) ( 3 2 , 1 2 ) on the unit circle.

    Try It #7

    Find the coordinates of the point on the unit circle at an angle of 5π 3 . 5π 3 .

    Media

    Access these online resources for additional instruction and practice with sine and cosine functions.

    5.2 Section Exercises

    Verbal

    1.

    Describe the unit circle.

    2.

    What do the x- and y-coordinates of the points on the unit circle represent?

    3.

    Discuss the difference between a coterminal angle and a reference angle.

    4.

    Explain how the cosine of an angle in the second quadrant differs from the cosine of its reference angle in the unit circle.

    5.

    Explain how the sine of an angle in the second quadrant differs from the sine of its reference angle in the unit circle.

    Algebraic

    For the following exercises, use the given sign of the sine and cosine functions to find the quadrant in which the terminal point determined by tt lies.

    6.

    sin(t)<0 sin(t)<0 and cos(t)<0 cos(t)<0

    7.

    sin(t)>0 sin(t)>0 and cos(t)>0 cos(t)>0

    8.

    sin(t)>0 sin(t)>0 and cos(t)<0 cos(t)<0

    9.

    sin(t)<0 sin(t)<0 and cos(t)>0 cos(t)>0

    For the following exercises, find the exact value of each trigonometric function.

    10.

    sin π 2 sin π 2

    11.

    sin π 3 sin π 3

    12.

    cos π 2 cos π 2

    13.

    cos π 3 cos π 3

    14.

    sin π 4 sin π 4

    15.

    cos π 4 cos π 4

    16.

    sin π 6 sin π 6

    17.

    sinπ sinπ

    18.

    sin 3π 2 sin 3π 2

    19.

    cosπ cosπ

    20.

    cos0 cos0

    21.

    cos π 6 cos π 6

    22.

    sin0 sin0

    Numeric

    For the following exercises, state the reference angle for the given angle.

    23.

    240° 240°

    24.

    170° 170°

    25.

    100° 100°

    26.

    315° 315°

    27.

    135° 135°

    28.

    5π 4 5π 4

    29.

    2π 3 2π 3

    30.

    5π 6 5π 6

    31.

    11π 3 11π 3

    32.

    7π 4 7π 4

    33.

    π 8 π 8

    For the following exercises, find the reference angle, the quadrant of the terminal side, and the sine and cosine of each angle. If the angle is not one of the special angles on the unit circle, use a calculator and round to three decimal places.

    34.

    225° 225°

    35.

    300° 300°

    36.

    320° 320°

    37.

    135° 135°

    38.

    210° 210°

    39.

    120° 120°

    40.

    250° 250°

    41.

    150° 150°

    42.

    5π 4 5π 4

    43.

    7π 6 7π 6

    44.

    5π 3 5π 3

    45.

    3π 4 3π 4

    46.

    4π 3 4π 3

    47.

    2π 3 2π 3

    48.

    5π 6 5π 6

    49.

    7π 4 7π 4

    For the following exercises, find the requested value.

    50.

    If cos( t )= 1 7 cos( t )= 1 7 and t t is in the 4th quadrant, find sin(t). sin(t).

    51.

    If cos( t )= 2 9 cos( t )= 2 9 and t t is in the 1st quadrant, find sin(t). sin(t).

    52.

    If sin( t )= 3 8 sin( t )= 3 8 and t t is in the 2nd quadrant, find cos(t). cos(t).

    53.

    If sin( t )= 1 4 sin( t )= 1 4 and t t is in the 3rd quadrant, find cos(t). cos(t).

    54.

    Find the coordinates of the point on a circle with radius 15 corresponding to an angle of 220°. 220°.

    55.

    Find the coordinates of the point on a circle with radius 20 corresponding to an angle of 120°. 120°.

    56.

    Find the coordinates of the point on a circle with radius 8 corresponding to an angle of 7π 4 . 7π 4 .

    57.

    Find the coordinates of the point on a circle with radius 16 corresponding to an angle of 5π 9 . 5π 9 .

    58.

    State the domain of the sine and cosine functions.

    59.

    State the range of the sine and cosine functions.

    Graphical

    For the following exercises, use the given point on the unit circle to find the value of the sine and cosine of t . t .

    60.
    Graph of a quarter circle with angles of 0, 30, 45, 60, and 90 degrees inscribed. Equivalence of angles in radians shown. Points along circle are marked.
    61.
    Graph of circle with angle of t inscribed. Point of (negative square root of 3 over 2, 1/2) is at intersection of terminal side of angle and edge of circle.
    62.
    Graph of circle with angle of t inscribed. Point of (1/2, negative square root of 3 over 2) is at intersection of terminal side of angle and edge of circle.
    63.
    Graph of circle with angle of t inscribed. Point of (negative square root of 2 over 2, negative square root of 2 over 2) is at intersection of terminal side of angle and edge of circle.
    64.
    Graph of circle with angle of t inscribed. Point of (1/2, square root of 3 over 2) is at intersection of terminal side of angle and edge of circle.
    65.
    Graph of circle with angle of t inscribed. Point of (-1/2, square root of 3 over 2) is at intersection of terminal side of angle and edge of circle.
    66.
    Graph of circle with angle of t inscribed. Point of (-1/2, negative square root of 3 over 2) is at intersection of terminal side of angle and edge of circle.
    67.
    Graph of circle with angle of t inscribed. Point of (square root of 2 over 2, negative square root of 2 over 2) is at intersection of terminal side of angle and edge of circle.
    68.
    Graph of circle with angle of t inscribed. Point of (1,0) is at intersection of terminal side of angle and edge of circle.
    69.
    Graph of circle with angle of t inscribed. Point of (-1,0) is at intersection of terminal side of angle and edge of circle.
    70.
    Graph of circle with angle of t inscribed. Point of (0.111,0.994) is at intersection of terminal side of angle and edge of circle.
    71.
    Graph of circle with angle of t inscribed. Point of (0.803,-0.596 is at intersection of terminal side of angle and edge of circle.
    72.
    Graph of circle with angle of t inscribed. Point of (negative square root of 2 over 2, square root of 2 over 2) is at intersection of terminal side of angle and edge of circle.
    73.
    Graph of circle with angle of t inscribed. Point of (square root of 3 over 2, 1/2) is at intersection of terminal side of angle and edge of circle.
    74.
    Graph of circle with angle of t inscribed. Point of (negative square root of 3 over 2, -1/2) is at intersection of terminal side of angle and edge of circle.
    75.

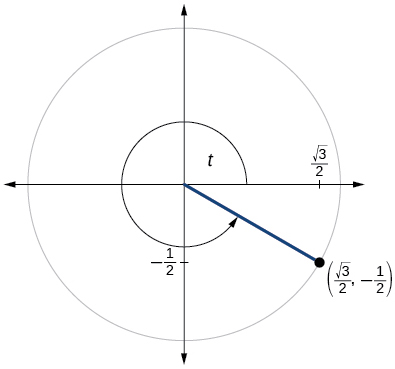

    Graph of circle with angle of t inscribed. Point of (square root of 3 over 2, -1/2) is at intersection of terminal side of angle and edge of circle.
    76.
    Graph of circle with angle of t inscribed. Point of (0, -1) is at intersection of terminal side of angle and edge of circle.
    77.
    Graph of circle with angle of t inscribed. Point of (-0.649, 0.761) is at intersection of terminal side of angle and edge of circle.
    78.
    Graph of circle with angle of t inscribed. Point of (-0.948, -0.317) is at intersection of terminal side of angle and edge of circle.
    79.
    Graph of circle with angle of t inscribed. Point of (0, 1) is at intersection of terminal side of angle and edge of circle.

    Technology

    For the following exercises, use a graphing calculator to evaluate.

    80.

    sin 5π 9 sin 5π 9

    81.

    cos 5π 9 cos 5π 9

    82.

    sin π 10 sin π 10

    83.

    cos π 10 cos π 10

    84.

    sin 3π 4 sin 3π 4

    85.

    cos 3π 4 cos 3π 4

    86.

    sin98° sin98°

    87.

    cos98° cos98°

    88.

    cos310° cos310°

    89.

    sin310° sin310°

    Extensions

    For the following exercises, evaluate.

    90.

    sin( 11π 3 )cos( 5π 6 ) sin( 11π 3 )cos( 5π 6 )

    91.

    sin( 3π 4 )cos( 5π 3 ) sin( 3π 4 )cos( 5π 3 )

    92.

    sin( 4π 3 )cos( π 2 ) sin( 4π 3 )cos( π 2 )

    93.

    sin( 9π 4 )cos( π 6 ) sin( 9π 4 )cos( π 6 )

    94.

    sin( π 6 )cos( π 3 ) sin( π 6 )cos( π 3 )

    95.

    sin( 7π 4 )cos( 2π 3 ) sin( 7π 4 )cos( 2π 3 )

    96.

    cos( 5π 6 )cos( 2π 3 ) cos( 5π 6 )cos( 2π 3 )

    97.

    cos( π 3 )cos( π 4 ) cos( π 3 )cos( π 4 )

    98.

    sin( 5π 4 )sin( 11π 6 ) sin( 5π 4 )sin( 11π 6 )

    99.

    sin( π )sin( π 6 ) sin( π )sin( π 6 )

    Real-World Applications

    For the following exercises, use this scenario: A child enters a carousel that takes one minute to revolve once around. The child enters at the point ( 0,1 ), ( 0,1 ), that is, on the due north position. Assume the carousel revolves counter clockwise.

    100.

    What are the coordinates of the child after 45 seconds?

    101.

    What are the coordinates of the child after 90 seconds?

    102.

    What is the coordinates of the child after 125 seconds?

    103.

    When will the child have coordinates ( 0.707,–0.707 ) ( 0.707,–0.707 ) if the ride lasts 6 minutes? (There are multiple answers.)

    104.

    When will the child have coordinates (−0.866,−0.5) (−0.866,−0.5) if the ride last 6 minutes?


    This page titled 5.3: Unit Circle - Sine and Cosine Functions is shared under a CC BY 4.0 license and was authored, remixed, and/or curated by OpenStax via source content that was edited to the style and standards of the LibreTexts platform.
